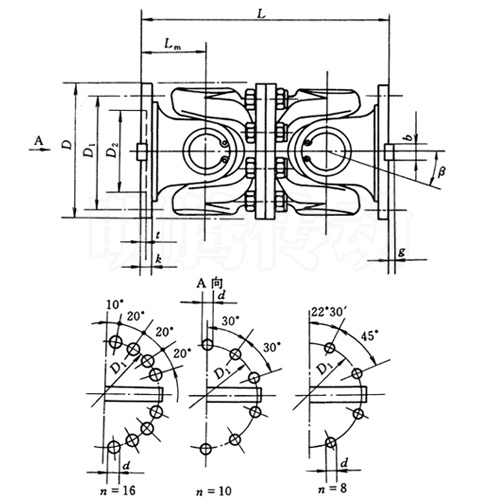

SWC-WD型無伸縮短式萬向聯軸器圖紙外形安裝尺寸（JB/T5513-91）
型號 | 回轉 直徑D | 公稱轉矩 Tn/kN·m | 疲勞轉矩 Tf/kN·m | 軸線折角 β/(°)≤ | L | D1 (js11) | D2 (H7) | Lm | n-d | k | t | b (h9) | g | 轉動慣量 I/kg·m2 | 質量 m/kg |
SWC180WD | 180 | 12.5 | 6.3 | 25 | 440 | 155 | 105 | 110 | 8-17 | 17 | 5 | - | - | 0.145 | 52 |
SWC225WD | 225 | 40 | 20 | 15 | 480 | 196 | 135 | 120 | 8-17 | 20 | 5 | 32 | 9 | 0.355 | 82 |
SWC250WD | 250 | 63 | 31.5 | 15 | 560 | 218 | 150 | 140 | 8-19 | 25 | 6 | 40 | 12.5 | 0.831 | 127 |
SWC285WD | 285 | 90 | 45 | 15 | 640 | 245 | 170 | 160 | 8-21 | 27 | 7 | 40 | 15 | 1.715 | 189 |
SWC315WD | 315 | 125 | 63 | 15 | 720 | 280 | 185 | 180 | 10-23 | 32 | 8 | 40 | 15 | 2.82 | 270 |
SWC350WD | 350 | 180 | 90 | 15 | 776 | 310 | 210 | 194 | 10-23 | 35 | 8 | 50 | 16 | 4.791 | 370 |
SWC390WD | 390 | 250 | 125 | 15 | 860 | 345 | 235 | 215 | 10-25 | 40 | 8 | 70 | 18 | 8.229 | 524 |
SWC440WD | 440 | 355 | 180 | 15 | 1040 | 390 | 255 | 260 | 16-28 | 42 | 10 | 80 | 20 | 15.32 | 798 |
SWC490WD | 490 | 500 | 250 | 15 | 1080 | 435 | 275 | 270 | 16-31 | 47 | 12 | 90 | 22.5 | 25.74 | 1055 |
SWC550WD | 550 | 710 | 355 | 15 | 1220 | 492 | 320 | 305 | 16-31 | 50 | 12 | 100 | 22.5 | 46.78 | 1524 |
SWC620WD | 620 | 1000 | 500 | 15 | 1360 | 555 | 380 | 340 | 10-38 | 55 | 12 | 100 | 25 | 83.76 | 2120 |
